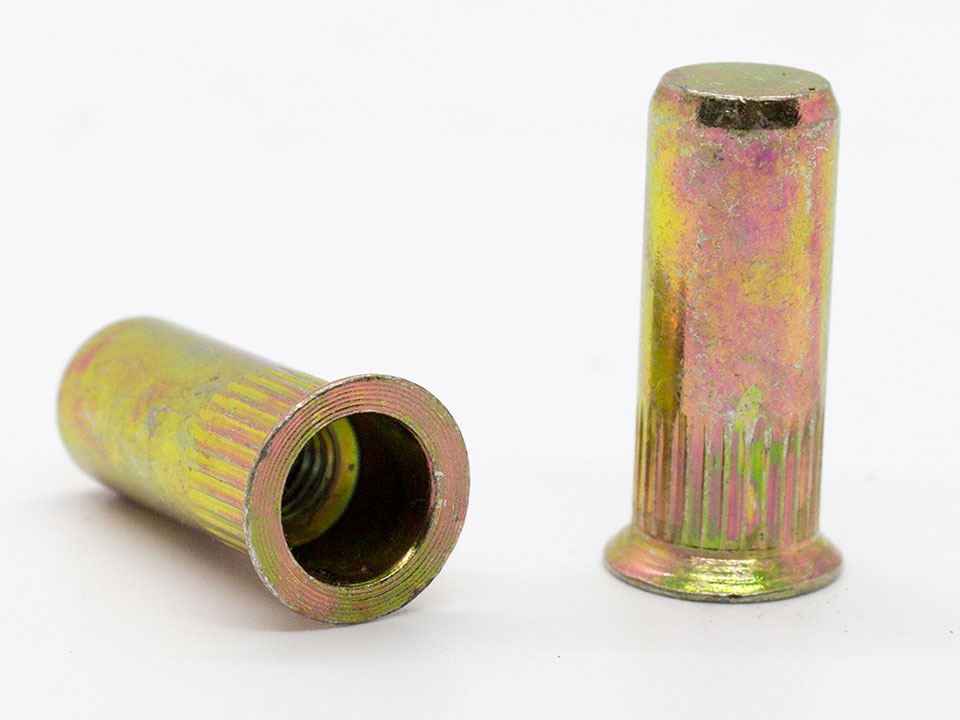

RIVET NUTS CLOSED STEEL KNURLED BODY COUNTERSUNK HEAD
Rivet Sealed Round Body with Nut is used in applications where it is necessary to prevent the passage of liquid and air. Sealed rivets with nuts are placed in the hole corresponding to the diameter of the rivet with the previously opened nut and fixed with manual or air nut rivet machine. It is ideal for food industry applications and for applications where the protection of electronic circuits is important.
Features and Benefits
Liquid and airtight structure
Clamping range M4 to M8
Countersunk Head
Scope of application
Automotive
Household appliances
Furniture
Advertising
Industrial kitchen
Metal Processing
| Metric | Boy(mm) | Hole Size(mm) | Sıkma Aralığı(mm) | Seri No |
|---|---|---|---|---|
| M4 | 17.5 | 9.0 | 2 - 3.5 | 02.21233.M041752035 |
| M5 | 20.5 | 10.0 | 2 - 4 | 02.21233.M052052040 |
| M6 | 23.5 | 12.0 | 2 - 4.5 | 02.21233.M062352045 |
| M8 | 28.0 | 14.0 | 2 - 4.5 | 02.21233.M082802045 |
