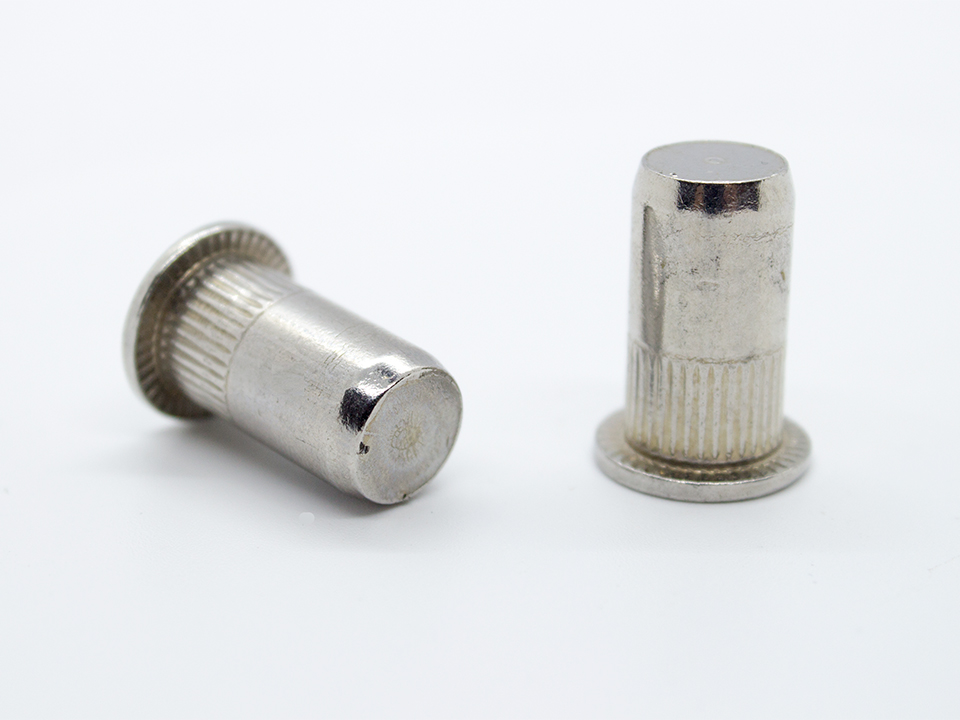

RIVET NUTS CLOSED INOX KNURLED BODY FLANGE HEAD
Rivet with Nut Sealed Round Body Flange Head is used in applications where liquid and air passage are required to be prevented. Rivets with nuts are placed in the hole suitable for the diameter of the rivet with nuts, which were previously drilled on the surface to be applied, and tightened and fixed with a manual or air rivet nut machine. Ideal for food industry applications and applications where protection of electronic circuits is important.
FEATURES AND BENEFITS
Liquid and Airtight sealed construction
M3 - M12 diameter range
High strength thanks to the Stainless Flange Head structure
SCOPE OF APPLICATION
Automotive
Household appliances
Furniture
Advertising
Industrial kitchen
Metalworking
| Metric | Boy(mm) | Hole Size(mm) | Sıkma Aralığı(mm) | Seri No |
|---|---|---|---|---|
| M3 | 13.0 | 6.0 | 0.5 - 1.5 | |
| M4 | 16.0 | 6.0 | 0.5 - 2 | |
| M4 | 18.0 | 6.0 | 2 - 4 | |
| M5 | 17.0 | 7.0 | 0.5 - 3 | |
| M5 | 19.0 | 7.0 | 2.5 - 5 | |
| M6 | 19.2 | 9.0 | 0.5 - 3 | |
| M6 | 21.0 | 9.0 | 3 - 5 | |
| M8 | 21.5 | 11.0 | 0.5 - 3 | |
| M8 | 24.0 | 11.0 | 3 - 5.5 | |
| M10 | 27.0 | 13.0 | 1 - 4 | |
| M10 | 32.5 | 13.0 | 3.5 - 6 | |
| M12 | 30.0 | 16.0 | 1 - 4 | |
| M12 | 33.0 | 16.0 | 4 - 6 |
