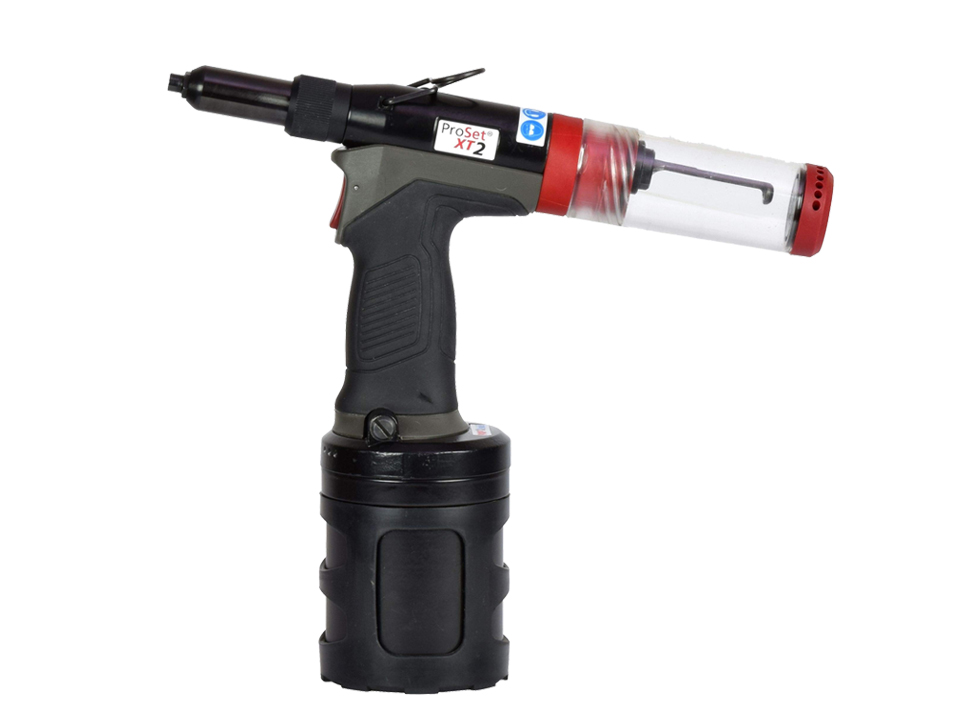

PROSET XT-2
The ProSet® XT2 compact, lightweight and reliable tool is among the highest force-to-weight ratio blind riveting tools in the industry. Its innovative, ergonomic design ensures maximum user comfort and productivity. The left or right swivelling air connection minimises air consumption and noise and saves energy. With the Mandrel Collection System (MCS), used mandrels are collected instantly and with the quick disconnect system, disposal takes no time.
Performance
- High force-to-weight ratio
- Quick-release nose guard and chin guard for easy maintenance and servicing
- Transparent, quick-release mandrel collector bottle reduces downtime
- Integrated exhaust valves for fast adjustment cycles
Ergonomic
- Class-leading lightweight construction with balanced handling
- Comfortable, low activation strong trigger
- Adjustable vacuum exhaust direction
Economy and Security
- Air isolation switch during MCS extraction
- On/Off, Left or right swivelling air connection minimises air consumption and noise and saves energy
- Rubber sole designed to prevent damage
- State-of-the-art lip seals maximise relining intervals
- Piston bearing rings ensure maximum rigidity and tool life
| SPECIFICATIONS | |
| Weight, including nose equipment | 1.26 kg |
| Weight, excluding nose equipment | 1.15 kg |
| Tensile force at 5.5 Bar | 8.9 kN |
| Force to weight ratio | 7.06 kN/kg |
| Stroke | 20 mm |
| Cycle time | 0.6 sn |
| Air supply pressure (dry, filtered) | 5.0 - 7.0 bar |
| Free air volume at 5.5 bar | 2.2 L |
| Noise level | 77.1 dB(A) |
| Jaw quantity | 3 |
| Ø | Aluminium | Coppper | Steel | Stainless Steel |
| 3,0 | • | • | • | • |
| 3,2 | • | • | • | • |
| 4,0 | • | • | • | • |
| 4,8/5,0 | • | • | • | • |
