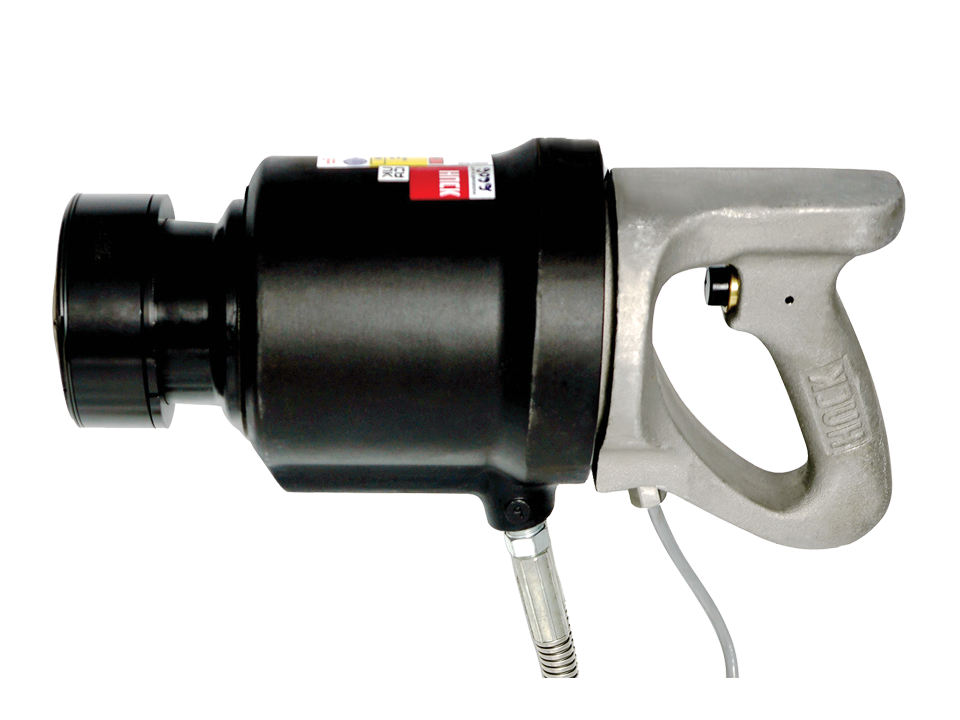

HUCK 507 HYDRAULIC RIVET GUN

PDF İndir

The Model 507 is a heavy duty tool sized for the installation of 1’ C50L HuckBolt fasteners. This rugged tool provides high speed assembly in a wide variety of production applications. The basic design of the Model 507 utilising a simple cylinder and piston assembly offers exceptional reliability. This tool also features a relief valve that relieves hydraulic pressure at both ends of the stroke and a pintail ejector built into the nose assembly.

Weight : 19.5 kg
Tensile Pressure 393 bar
Maximum Operating Temperature : (51.7° C)
Power Supply : Powerig Hydraulic Unit
Head Length : 166,69 mm
Stroke : 63.50 mm
C50L rivets can be applied.
Nose assemblies, hydraulic power equipment, hose assembly and nose tips are sold separately.
