2620 HYDRAULIC RIVET GUN

PDF İndir

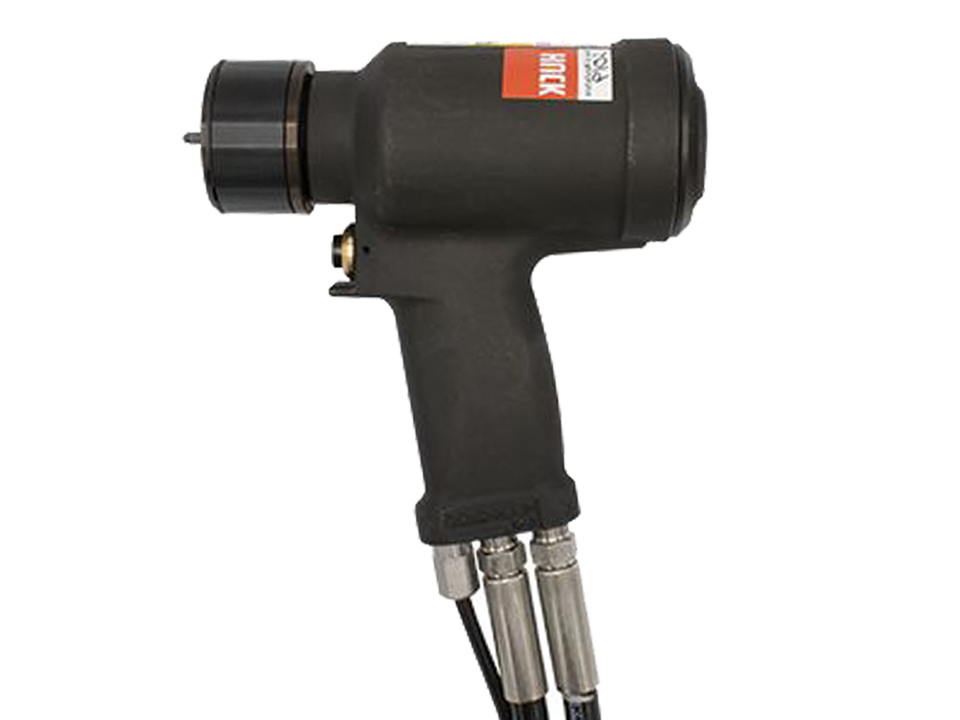

The Huck 2620 is a lightweight and versatile assembly tool designed for use with a wide range of Huck blind fasteners and HuckBolt fasteners. The tool's compact size allows it to fit into applications with limited clearance, while its light weight provides exceptional operator efficiency. The 2620 is sized for high-speed installation of Huck large fasteners. The tool features an in-line piston that extends seal life. The 2620 has only one moving part, minimising maintenance.

Weight : 4,48 kg
Max. air pressure : 6.2 bar
Maximum Operating Temperature : (51.7° C)
Power Supply : Powerig Hydraulic Unit
Head Length : 166,69 mm
Stroke : 36.50 mm
Max. Pressure : 7.5 Bar
Height : 164,00 mm
Length : 23 cm
Height : 178.97 mm
Boom / C50L / Magna Grip / BobTail rivets are applicable.
Nose assemblies, hydraulic power equipment, hose assembly and nose tips are sold separately.
