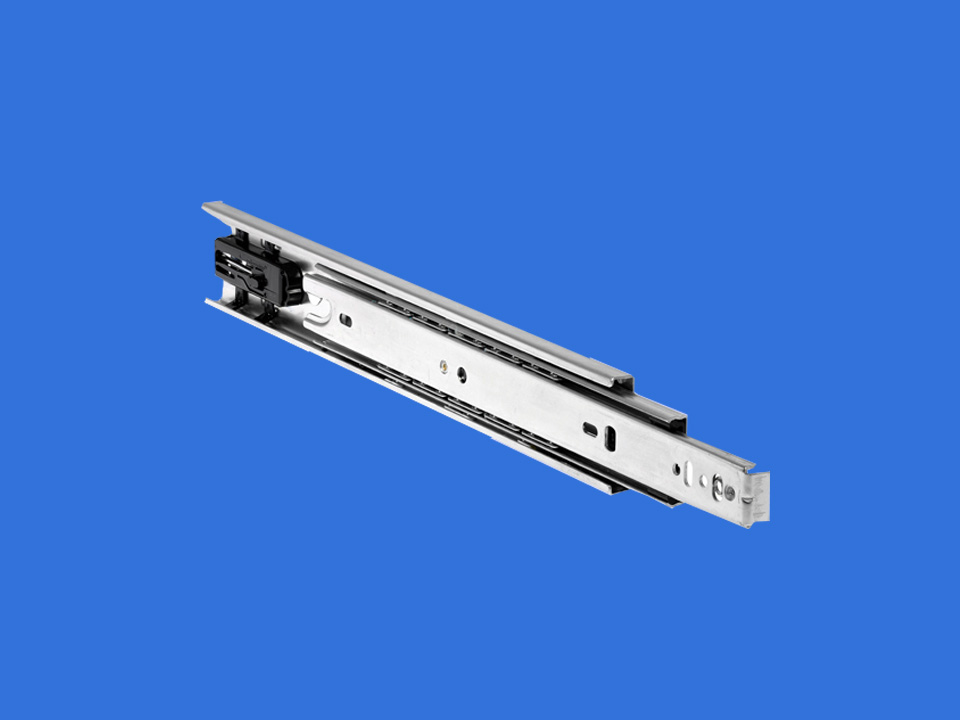

DZ3832-SC

Self close drawer slide DZ3832-SC with a load rating upto 45-50kg, light duty with 100% extension, in black colour, 12.7mm-14mm slide thickness, hold-in & front disconnect. Feature. Use for furniture cabinet hardware

Closing/opening force: 14 - 27N per slide
Load rating up to 45/50kg
100% extension

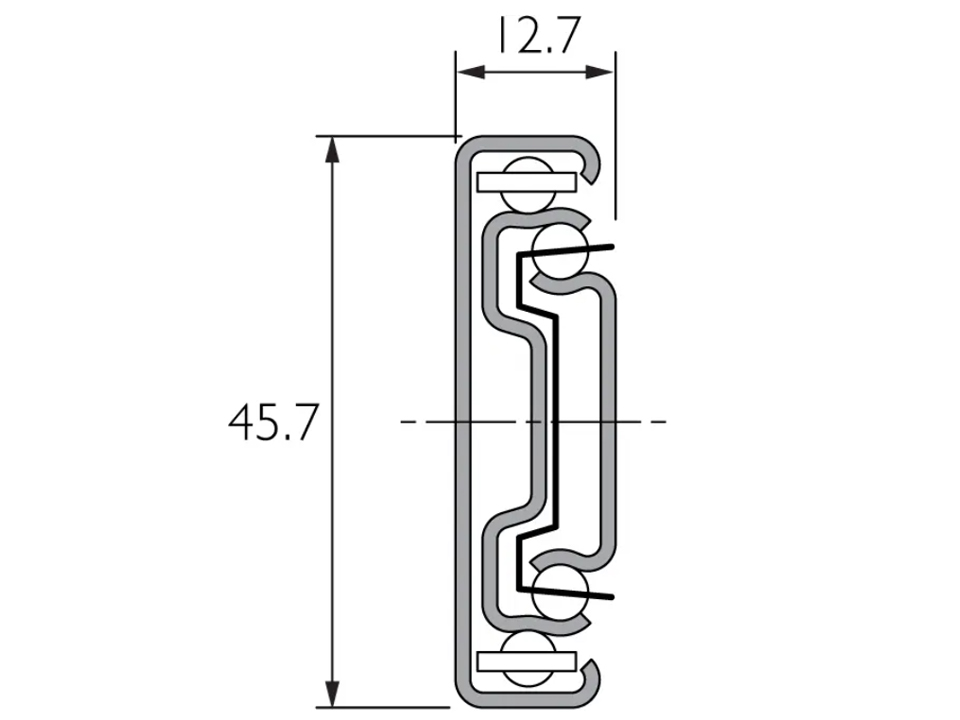

12.7mm slide thickness (14mm with mounting bracket)
Optional clip-on bracket for bottom & platform mounting
Front disconnect
Hold-in
Cam drawer adjust
