DZ0201

PDF İndir

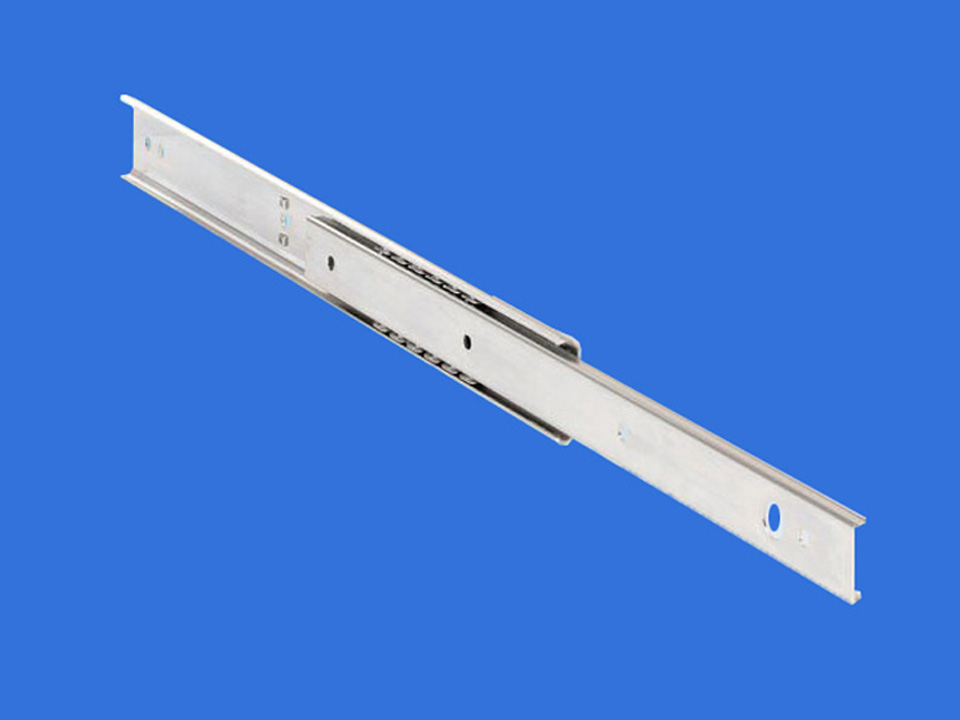

Part extension industrial slide DZ0201 that has a load rating up to 50kg, light duty with 75% extension, slide thickness of 9.5mm & is a basic two-section slide. Use in 19inch racks & can be flat mounted.

Load rating up to 50kg
75% extension

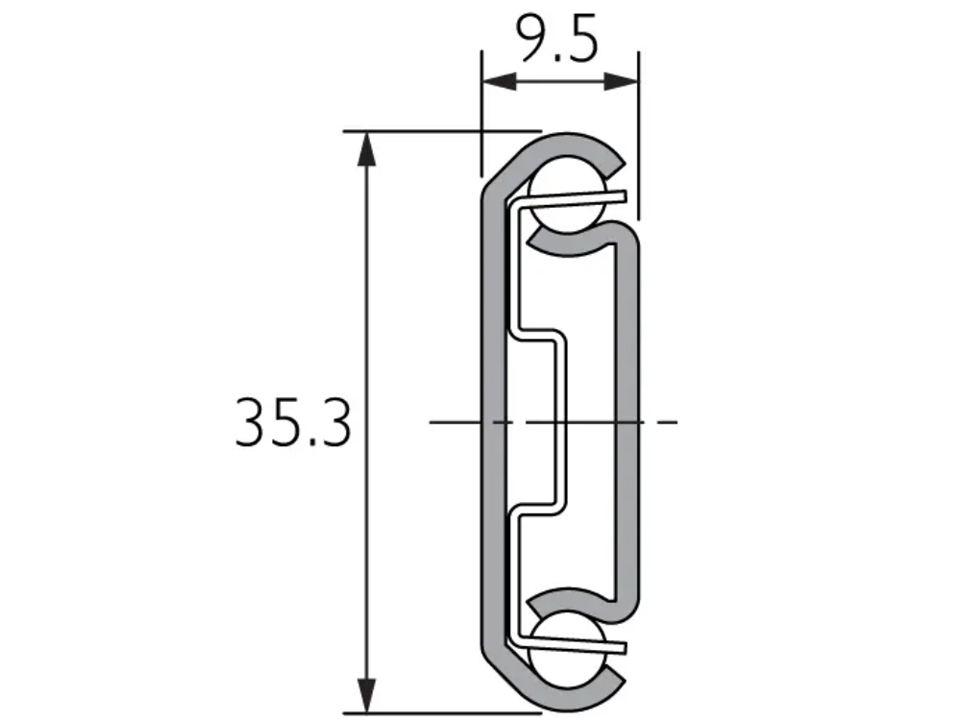

9.5mm slide thickness
Basic, two-section slide
Optional enclosure mounting brackets
Please refer to 2D CAD drawings for dimensional tolerances
Suitable for flat mounting
Flat mounting reduces load rating by 75%
Temperature -20°C to +110°C
DZ - 12 hours salt spray test

PRODUCT FEATURES

Suitable for flat mounting
Used in 19" racks
Temperature Range Between -20º & 110º C
DZ - Electro zinc plate and blue passivate
Life time guarantee: it's Quick Ship ™ slides against defects in material and workmanship. Please Read more under Help and policy section
Light Duty Slide
