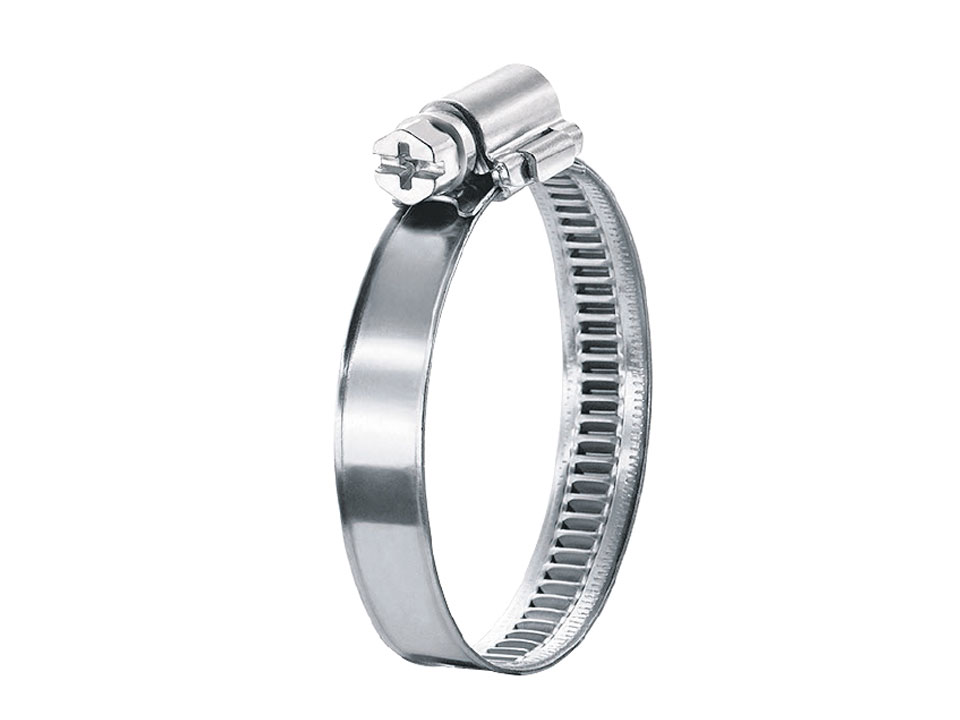

Worm Drive Clamps 126 & 177
FEATURES
~ 360° StepLess®: smooth 360° compression and smooth surface pressure.
~ Locking position options: adjustable to different nominal diameters
~ Dec Protection articulated Lock System: quick and easy installation, high tightening torque
* Visual overload protection
~ Relief tape strip: reduces the risk of damage to the clamped piece.
~ Compact design: minimum space requirement and small dimensions
~ Self-tensioning: thermal loop balances diameter changes.
Robust: improved surface pressure thanks to its curved, Burr-free edges (optimized tape ensures more than DIN 3017 standard)
Safe: with a curved strip with no Burr edges, the hose is not damaged, optimum sealing is achieved
Employee friendly: suitable for different diameters of one size, quick and easy service with common screwdriver or torque wrench
Material 126
W1 all parts galvanized steel W2 tape and body: stainless steel material no. 1.4016 / UNS S43000 hexagonal head screw: steel, zinc plated
Material 177
W3 all parts stainless steel material no. 1.4016 / UNS S43000 W4 all parts stainless steel material no. 1.4301 / UNS S30400

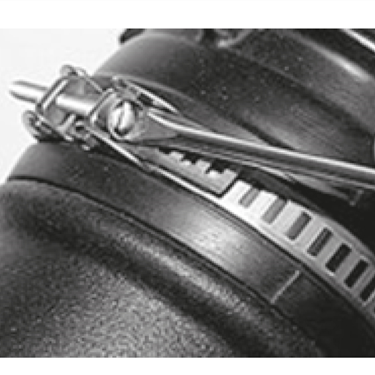

Clamp Structure
Oetiker Infinite screw system clamps are technically advanced, multi-series hose clamps covering a wide range of clamping diameters. Hoses of different diameters can be securely connected with a single clamp. The bands of these infinite screw system clamps produced by cold forming are slightly curved. The depth of the teeth marks decreases on both sides - the teeth marks reach full depths in the middle. The W1 and W2 material quality infinite screw system clamps have a hex head screw (Phillips) with 7 a / f Star slots. The W3 and W4 material quality clamps feature a hexagonal head screw with a standard screwdriver slot.
Assembly Proposal
We recommend the use of flexible screwdrivers for professional installation. This tool ensures safe installation even in difficult places. Electronically monitored, controlled torque screwdrivers should be used in Series assembly where high Process Reliability is required.
Advantages
Durable Tape Design
+ Improved surface pressure
+ Optimized DIN3017 standard
Good
+ Optimum sealing
Labour-Friendly
+ Clamp system that fits different diameters
+ Quick and easy installation system
APPLICATION AREAS
~ Heating and cooling systems
~ Exhaust Systems
~ Ventilation Systems
~ Beverage Distribution Systems
~ Steering Systems
~ Medical Applications
~ White Goods
