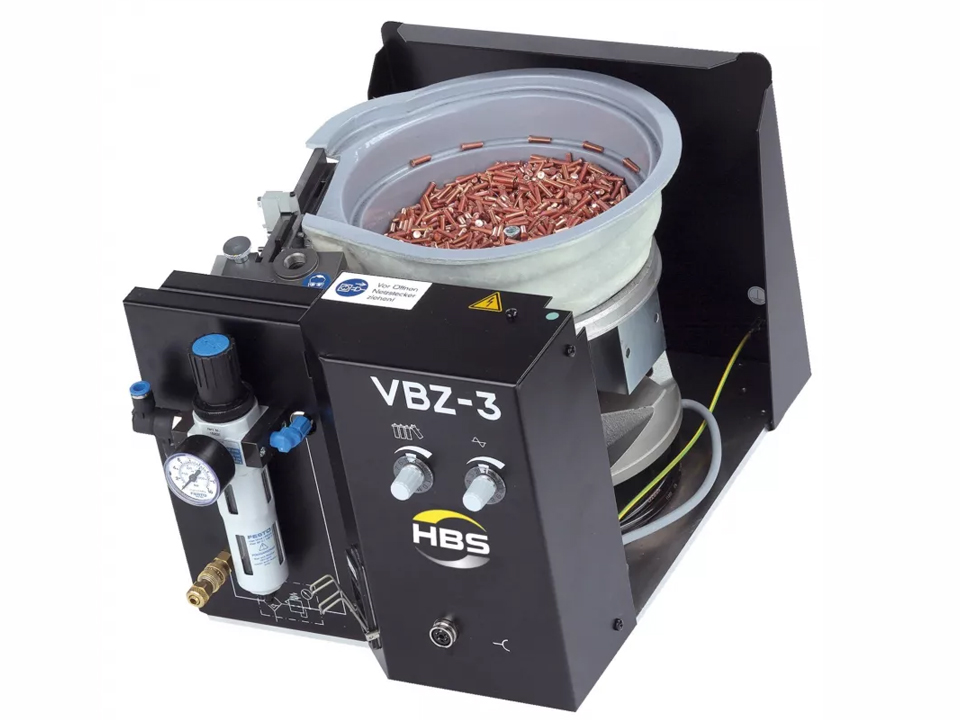

VBZ-3 AUTOMATIC WELD STUD FEEDING MACHINE

Stud Diameter	M3 to M8, dia. 3 to 8 mm / #4 to 5/16, dia. #4 to 5/16“ (other diameter on request)
Stud Lenght	8 to 50 mm
Feed Speed	Up to 30 studs/min (depending on welding element and feeding tube)
Air Pressure Connection	6 bar/800 litre/min
Primary Power	230 V, 50 Hz, 0.9 A alternative primary power see „Order No.“
IP Code	IP 20
Dimension LxWxH	470 x 310 x 280 mm
Weight	24 kg
