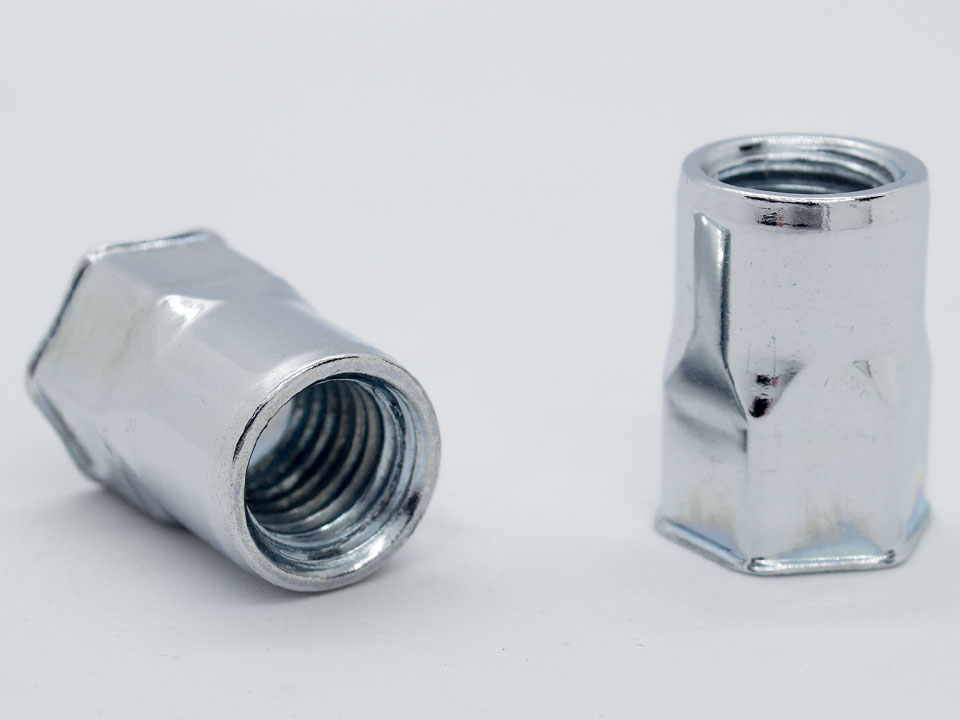

RIVET NUTS STEEL HALF HEX BODY REDUCED HEAD
Half hexagon reduced head rivets nuts have higher tensile and tear values than other rivet models. It can be used in applications where resistance to high forces is desired. M3 - M12 lengths produced in half hexagonal rivets can be applied even to thin sheets of 0.5mm thickness. Application can be easily done with rivet tools.
SCOPE OF APPLICATION
AUTOMOTIVE
HOUSEHOLD APPLIANCES
ELECTRICITY
ELECTRONIC
FURNITURE
INDUSTRIAL KITCHEN
| Metric | Length(mm) | Hole Size(mm) | Grip Range(mm) | Serial Number |
|---|---|---|---|---|
| M3 | 12.0 | 5.0 | 0.5 - 2 | 02.14223.M031200520 |
| M4 | 12.0 | 6.0 | 0.5 - 2 | 02.14223.M041200520 |
| M5 | 13.0 | 7.0 | 0.5 - 2.5 | 02.14223.M051300525 |
| M6 | 16.0 | 9.0 | 1 - 3.5 | 02.14223.M061601035 |
| M8 | 17.5 | 11.0 | 1 - 3.5 | 02.14223.M081751035 |
| M10 | 21.0 | 13.0 | 1 - 4 | 02.14223.M102101040 |
| M12 | 23.0 | 15.0 | 1 - 4 | 02.14223.M122301040 |
