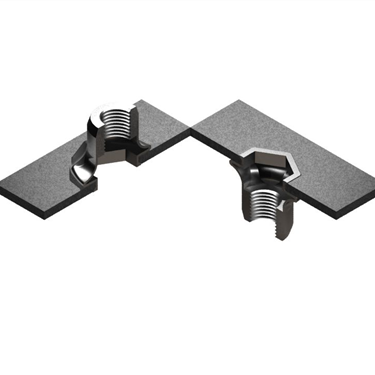

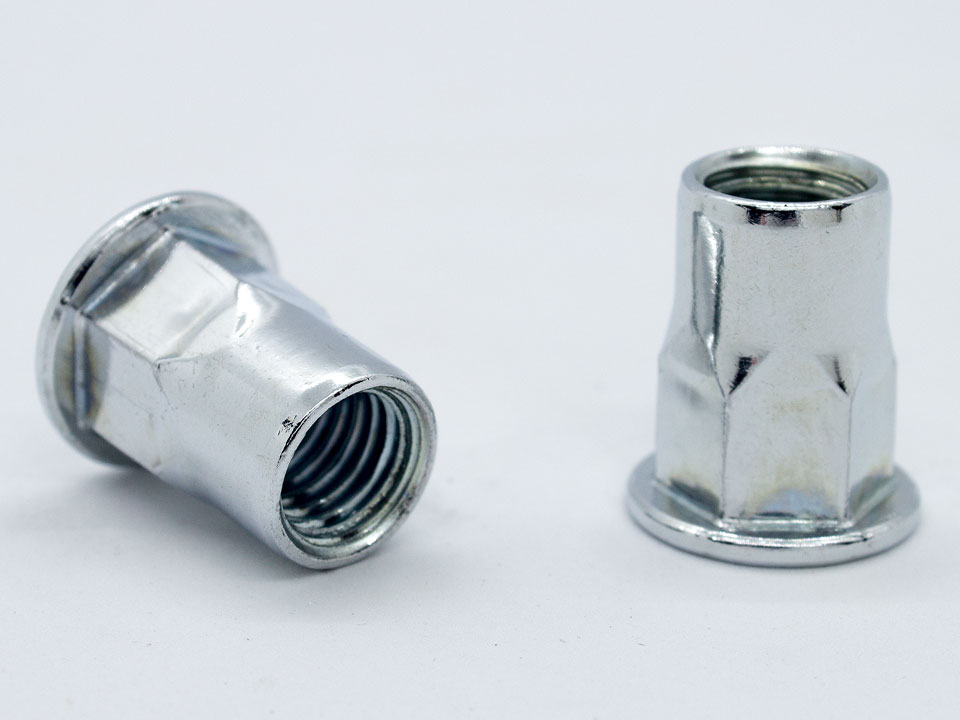

RIVET NUTS STEEL HALF HEX BODY FLANGE HEAD
Rivets with half hex nut have higher tensile and tear values than round body rivets. It is used in applications where resistance to high forces is required. Rivets with half hexagonal zero head nuts are ideal for applications where high strength and minimum roughness are required.
SCOPE OF APPLICATION
AUTOMOTIVE
HOUSEHOLD APPLIANCES
ELECTRICITY
ELECTRONIC
FURNITURE
INDUSTRIAL KITCHEN
ADVERTISING
| Metric | Length(mm) | Hole Size(mm) | Grip Range(mm) | Serial Number |
|---|---|---|---|---|
| M3 | 9.0 | 5.0 | 0.5 - 2 | 02.14213.M030900520 |
| M4 | 11.0 | 6.0 | 0.5 - 2 | 02.14213.M041100520 |
| M5 | 12.0 | 7.0 | 0.5 - 2.5 | 02.14213.M051200525 |
| M6 | 15.5 | 9.0 | 0.5 - 3 | 02.14213.M061550530 |
| M8 | 18.0 | 11.0 | 1 - 3.5 | 02.14213.M081801035 |
| M10 | 21.0 | 13.0 | 1 - 4 | 02.14213.M102201040 |
| M12 | 22.0 | 15.0 | 1 - 4 | 02.14213.M122201040 |
