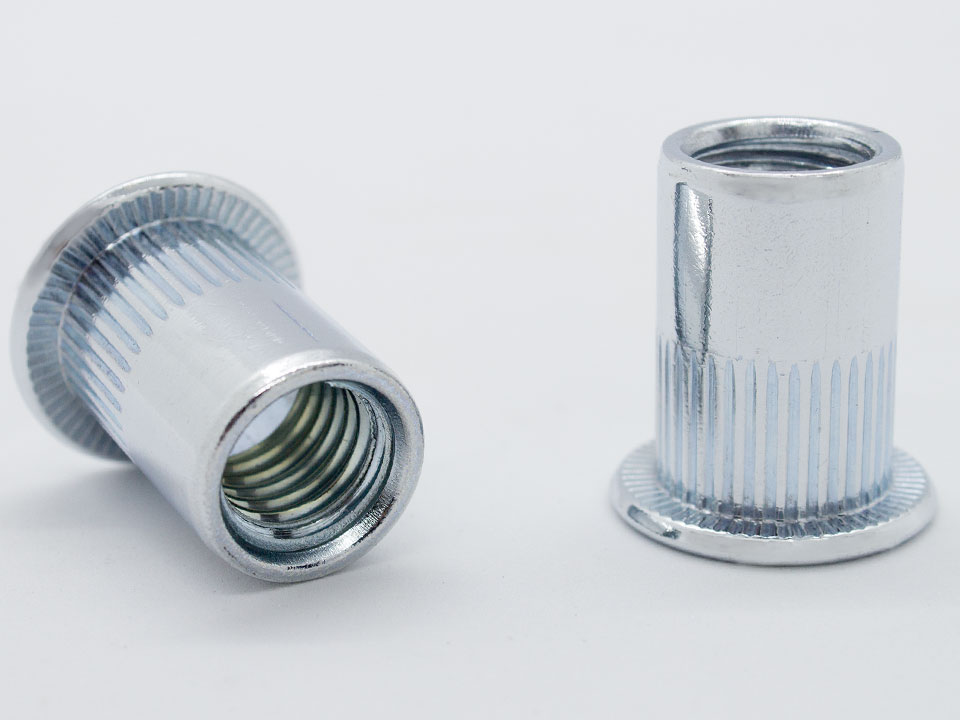

RIVET NUTS STEEL KNURLED BODY FLANGE HEAD
Onurfix offers the ideal solution for high-quality, thin-plate, load-resistant bonding applications. It provides fast and reliable application without the need for reprocessing and without damaging the base material. It can be used safely even in painted materials with access from one side. The nut rivet has many benefits compared to welding nuts, self-tapping screws, nuts and bolts:
Single side mounting
Low cost application
Reliable and secure connection
Easy to use in punched, pressed parts
Does not damage the surface coating
Low labor requirements and low waste
Compliance with automation
FEATURES AND BENEFITS
Suitable for use on thin sheets starting from 0.50 mm Wide range of clamping Ideal for use with sheet metal from 0.5 mm to 6.5 mm Better connection with knurled body Rivet types with zero head nuts allow closer mounting of materials without the need for special machining Flange head nut rivet types Increases the breaking performance and carries more load.
SCOPE OF APPLICATION
Automotive
Household appliances
Electrical engineering
Home Appliances
General Lighting Applications
| Metric | Length(mm) | Hole Size(mm) | Grip Range(mm) | Serial Number |
|---|---|---|---|---|
| M3 | 10.0 | 5.0 | 0.5 - 1.5 | 02.11213.M031000515 |
| M4 | 10.5 | 6.0 | 0.5 - 2 | 02.11213.M041050520 |
| M4 | 12.0 | 6.0 | 2 - 3.5 | 02.11213.M041202035 |
| M5 | 13.0 | 7.0 | 0.5 - 2.5 | 02.11213.M051300525 |
| M5 | 16.5 | 7.0 | 2.5 - 5 | 02.11213.M051652550 |
| M6 | 15.5 | 9.0 | 0.5 - 3 | 02.11213.M061550530 |
| M6 | 19.5 | 9.0 | 3 - 5.5 | 02.11213.M061953055 |
| M8 | 18.5 | 11.0 | 1 - 3.5 | 02.11213.M081851035 |
| M8 | 21.0 | 11.0 | 3.5 - 6 | 02.11213.M082103560 |
| M10 | 21.5 | 13.0 | 1 - 4 | 02.11213.M102141040 |
| M10 | 24.0 | 13.0 | 4 - 6.5 | 02.11213.M102404065 |
| M12 | 25.0 | 15.0 | 1 - 3.5 | 02.11213.M122501035 |
| M12 | 27.0 | 15.0 | 1 - 4 | 02.11213.M122701040 |
| M12 | 28.0 | 16.0 | 3.5 - 6 | 02.11213.M122803560 |
