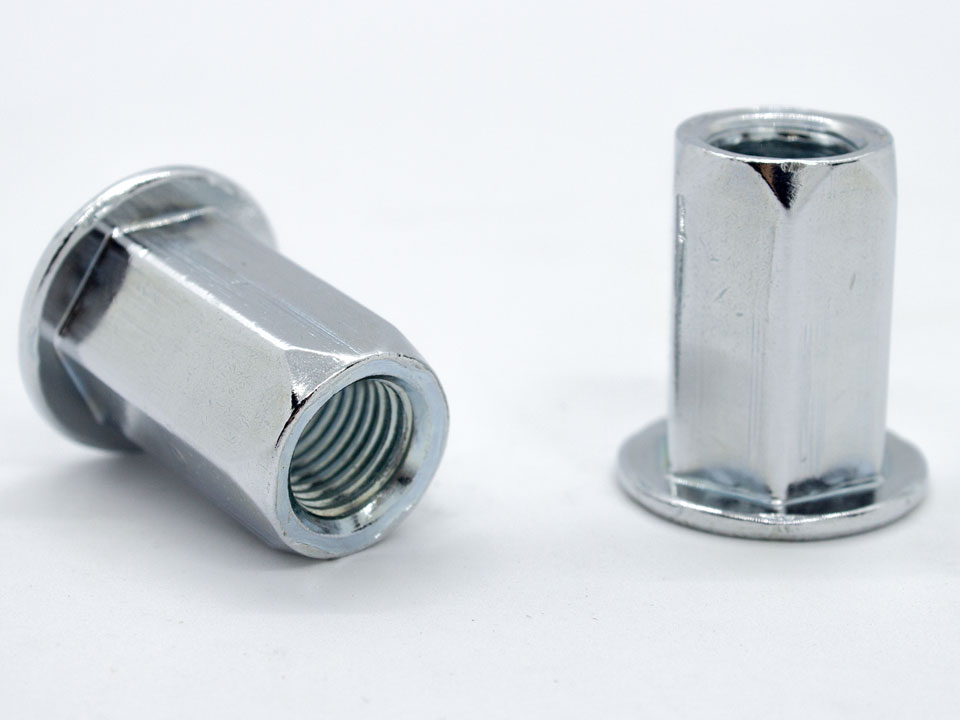

RIVET NUTS STAINLESS STEEL HEX BODY FLANGE HEAD

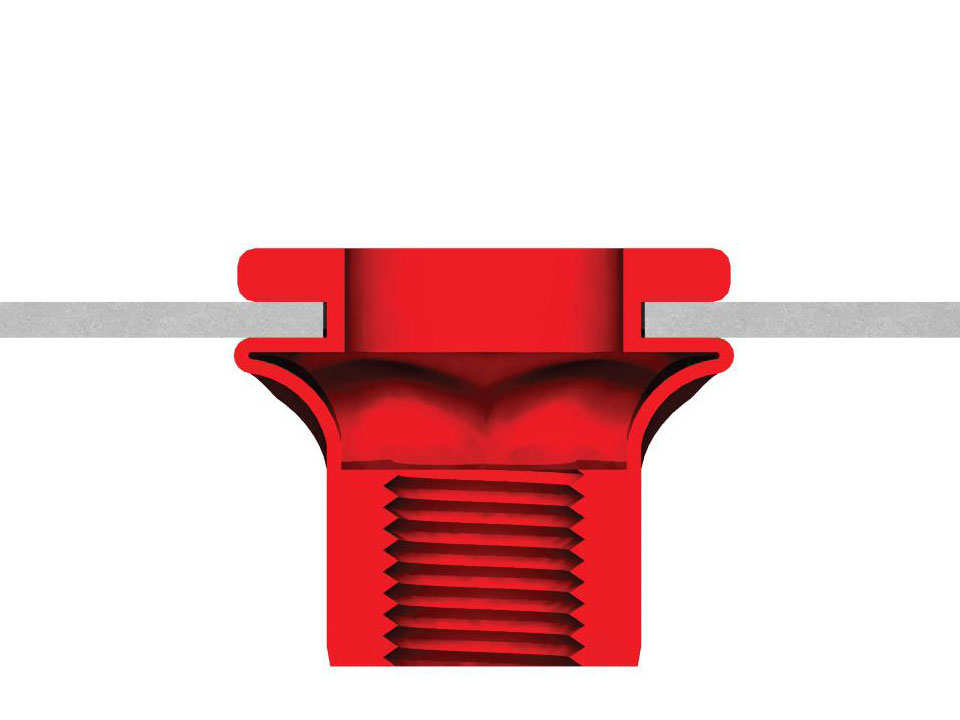

Full Hexagon Flange Head Nut Rivets have higher tensile and shear values than round body rivets. They are used in applications where resistance to high forces is required. Full hexagon flange head nut rivets increase resistance to high forces at the connection point thanks to their larger surface area.
APPLICATION AREAS
- AUTOMOTIVE
- WHITE GOODS
- ELECTRICAL ELECTRONICS
- FURNITURE
- INDUSTRIAL KITCHEN
- ADVERTISING
- METAL PROCESSING
| Metric | Length(mm) | Hole Size(mm) | Grip Range(mm) | Serial Number |
|---|---|---|---|---|
| M3 | 8.5 | 5.0 | 0.5 - 1.5 | 02.13311.M03085 |
| M4 | 11.0 | 6.0 | 0.5 - 2 | 02.13311.M04110 |
| M5 | 14.0 | 7.0 | 0.5 - 2.5 | 02.13311.M05140 |
| M6 | 15.0 | 9.0 | 0.5 - 3 | 02.13311.M06150 |
| M6 | 16.0 | 9.0 | 0.5 - 3 | 02.13311.M06150 |
| M8 | 18.0 | 11.0 | 1 - 3.5 | 02.13311.M08180 |
| M10 | 21.0 | 13.0 | 1 - 3.5 | 02.13311.M10210 |
| M10 | 23.0 | 13.0 | 1 - 3.5 | 02.13311.M10210 |
| M10 | 21.0 | 12.0 | 1 - 3.5 | 02.13311.M10210 |
| M12 | 23.0 | 15.0 | 1 - 4 | 02.13311.M12230 |
| M12 | 27.0 | 16.0 | 2 - 5 | 02.13311.M12270 |
