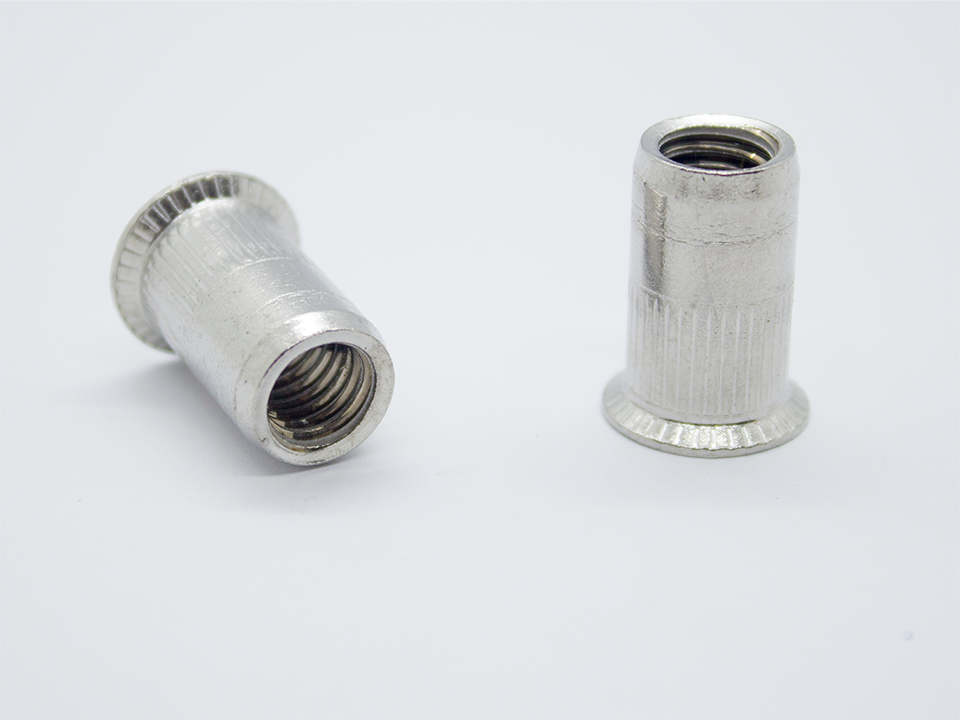

RIVET NUTS INOX KNURLED BODY COUNTERSUNK HEAD
Onurfix offers the ideal solution for high-quality, thin-plate, load-resistant bonding applications. It provides fast and reliable application without the need for reprocessing and without damaging the base material. It can be used safely even in painted materials with access from one side. Stainless Nut Rivet has many benefits to weld nuts compared to nuts and bolts:
Single side mounting
Low cost application
Reliable and secure connection
Easy to use in punched, pressed parts
Does not damage the surface coating
Low labor requirements and low waste
Compliance with automation
FEATURES AND BENEFITS
Suitable for use on thin sheets starting from 0.50 mm and can be applied. With a wide clamping range, it is ideal for use on sheets from 0.5 mm to 6.5 mm. Better connection can be achieved with the knurled body. The rivet assortment with zero head stainless nut enables the assembly of materials closer to each other without the need for a special process, and the nut rivet assortment increases the breaking performance and carries more load.
SCOPE OF APPLICATION
Automotive
Household appliances
Electrical engineering
Home Appliances
General Lighting Applications
| Metric | Length(mm) | Hole Size(mm) | Grip Range(mm) | Serial Number |
|---|---|---|---|---|
| M4 | 12.0 | 6.0 | 1.5 - 3 | 02.11331.M04120 |
| M5 | 13.0 | 7.0 | 1.5 - 3.5 | 02.11331.M05130 |
| M6 | 15.5 | 9.0 | 1.5 - 4 | 02.11331.M06155 |
| M8 | 18.5 | 11.0 | 2 - 4.5 | 02.11331.M08185 |
| M10 | 21.0 | 13.0 | 2 - 5 | 02.11331.M10210 |
| M12 | 24.0 | 16.0 | 2 - 5 | 02.11331.M12240 |
