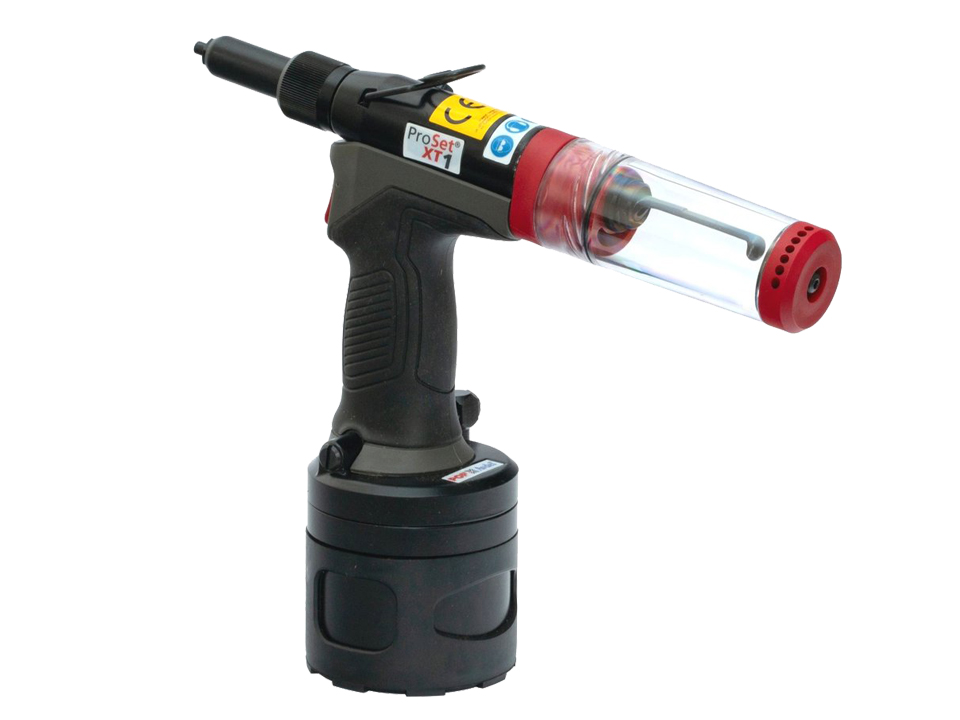

PROSET XT-1
The ProSet® XT1 compact, lightweight and reliable tool is among the highest force-to-weight ratio blind riveting tools in the industry. Its innovative, ergonomic design ensures maximum user comfort and productivity. The left or right swivelling air connection minimises air consumption and noise and saves energy. With the Mandrel Collection System (MCS), used mandrels are collected instantly and the quick disconnect system makes disposal time-saving.
Performance
- High force-to-weight ratio
- Quick-release nose and jaw housing for easy maintenance and servicing
- Transparent, quick-release mandrel collector bottle reduces downtime
- Integrated exhaust valves for fast adjustment cycles
Ergonomic
- Class leading lightweight construction
- Comfortable, low activation trigger
- Adjustable vacuum exhaust direction
Economical & Safe
- Air isolation switch during MCS removal
- On/Off, left or right rotary air connection minimises air consumption and noise and saves energy
- Rubber base designed to prevent damage
- State-of-the-art lip seals maximise relining intervals
- Piston bearing rings ensure maximum durability and tool life
| Ø | Aluminium | Coppper | Steel | Stainless Steel |
| 2.4 | • | • | • | • |
| 3.0 | • | • | • | • |
| 3.2 | • | • | • | • |
| 4.0 | • | • | • | • |
| SPECIFICATIONS | |
| Weight, including nose equipment | 1.17 kg |
| Weight, excluding nose equipment | 1.07 kg |
| Tensile force at 5.5 Bar | 6.5 kN |
| Force to weight ratio | 5.55 kN/kg |
| Stroke | 18 mm |
| Cycle time | 0.4 sn |
| Air supply pressure (dry, filtered) | 5.0 - 7.0 bar |
| Free air volume at 5.5 bar | 2.2 L |
| Noise level | 77.1 dB(A) |
| Jaw quantity | 3 |
