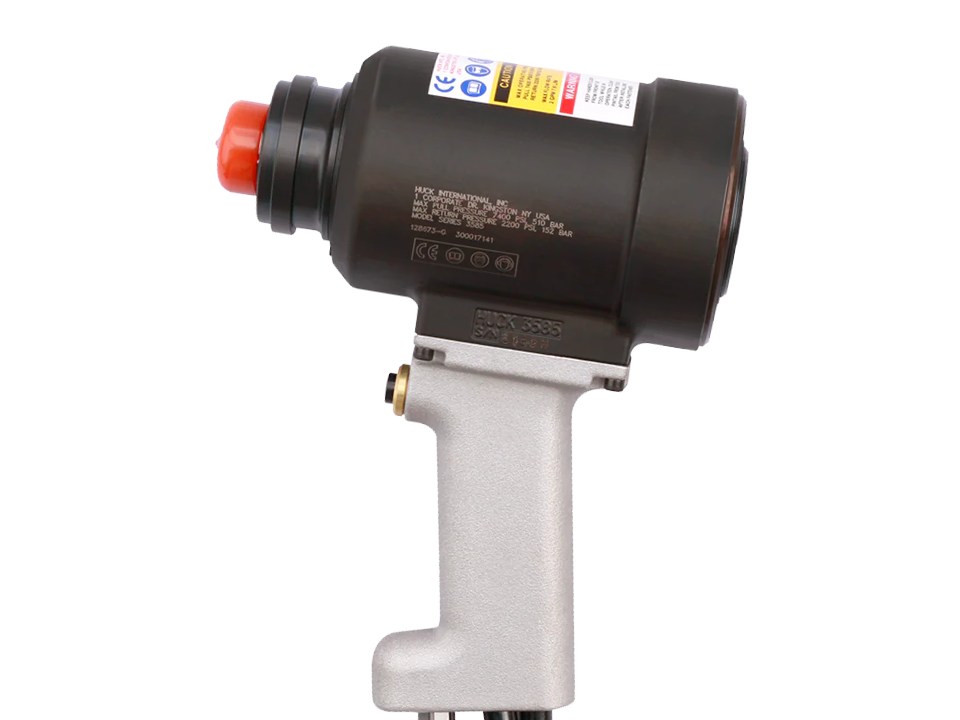

HUCK 3585 HYDRAULIC RIVET GUN

Download PDF

The Huck 3585 Air Blind Rivet Tool operates at 7400 psi (510 BAR) PULL and 3200 psi (220 BAR) RETURN pressures supplied by 918 Powerig hydraulic power unit models or equivalent. Lengths and weights do not include Nose Assemblies. Except for the nose assembly, the hydraulic rivet gun is ready to be attached to a HUCK POWERIG with handle, hoses, couplers and control cable. The Huck 3585 tool is basically a cylinder and piston assembly. A relief valve, designed to relieve hydraulic pressure at both ends of the stroke, is positioned next to the piston.

Weight : 8.62kg
Maximum Operating Temperature : (51.7° C)
Power Supply : Powerig Hydraulic Unit
Stroke : 46 mm
Max. Tensile Pressure : 510Bar
Head Length 219 mm
Head Width: 48 mm
Total Height: 164 mm
Length : 22 cm
C50L / BOBTAIL / BOM rivets are applicable.
Nose assemblies, hydraulic power equipment, hose assembly and nose ends are sold separately.
