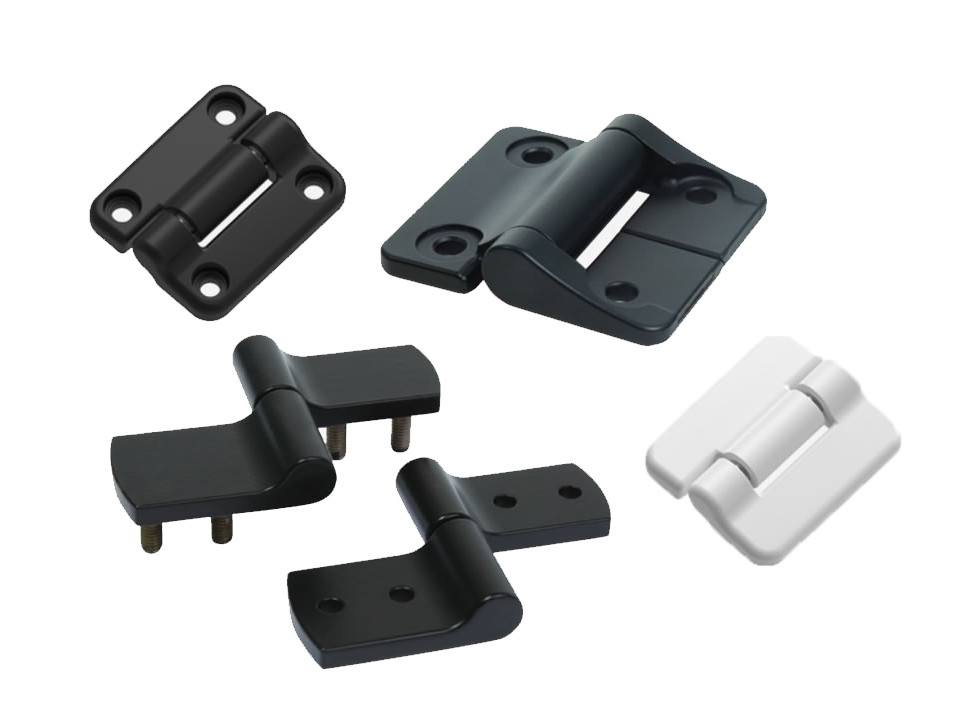

E6 / ST - CONSTANT TORQUE POSİTİON CONTROL HİNGES

Southco’s line of Constant Torque Position Control Hinges provide constant resistance throughout the entire range of motion, enabling users to easily position doors, display screens and other mounted components and hold them securely at any desired angle – fully opened, fully closed or anywhere in between. Hinges are available in a wide variety of sizes, materials and torque ranges to satisfy application needs across industries.

The E6 / ST class eliminates the need for secondary supports to hold hinged components in position.

Preset in our manufacturing facility and never requires adjustment
Zero-drift and backlash, even under vibration or dynamic loads
Robust construction suitable for indoor and outdoor use
Multiple size and torque ratings to accommodate a range of load requirements
Easy integration and simple installation without added cost

Available Options

Wide range of styles available including an abrasion resistant satin chrome finish
Thru-hole and rear/concealed mounting options
Available in multiple colors and finishes to match application designs
Available with asymmetric torque for easy lifting operation
Contact Southco for additional torque range, color and finish possibilities
Available with plastic, aluminum, or die cast zinc construction
Available with torque only in one direction

Standards and Specifications

Long-lasting hinges are rated to stay within ±20% of rated torque value for 20,000 cycles
Hinge resistance ranges up to 12.4N.m (110 in-lbf)

Industry Applications

Aerospace
Automotive
Off-Highway – Construction, Farm Vehicles
Enclosures
Food Equipment
Furniture
HVAC – Heating/Ventilation/Air Conditioning
Industrial Machinery
Marine
Medical Equipment
Telecoms/Networking – Switches, Routing
Rail
Signs, Exhibits & Displays
Self Service-Point of Sale
