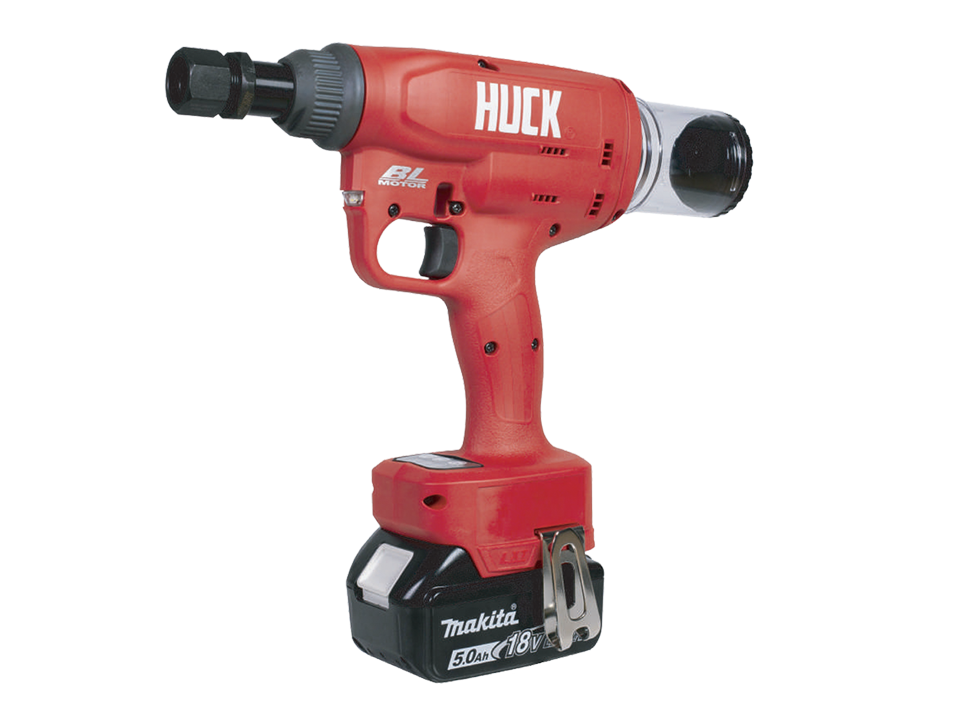

BV4500 CORDLESS RIVET GUN

Download PDF

Known for reliability and robust performance, the specially designed tools provide consistent, repeatable and precise fixing installations. The adjustable force feature ensures consistent installations every time. This battery-powered system is particularly well suited for field installations or assembly lines where mobility and adaptability are paramount. The ability to operate without power cord restrictions makes it an ideal choice for industries requiring flexibility and consistency in fastening applications.

FEATURES

* Single-charge rivet gun with electronic pulling force adjustment
* High quality and durability (tested with 50,000 rivets)
* High pulling force (adjustable) & long pulling stroke range for many different rivets
* Used in the application of all Huck blind rivets and lockbolts (blind rivets up to 6.4 mm 1/4 BobTail / Magnagrip)
* Fully compatible with Huck rivet nozzles and Makita 18V batteries

Capacity : 3/16‘ (4.8mm) - 1/4’ (6.4mm)
Stroke Length : 30mm
Pulling Force : Adjustable up to 20kN
Weight : 2kg, with 5Ah battery
Battery : 18V / Li-ion / 5Ah
Charging Time : 45min (approx.)
