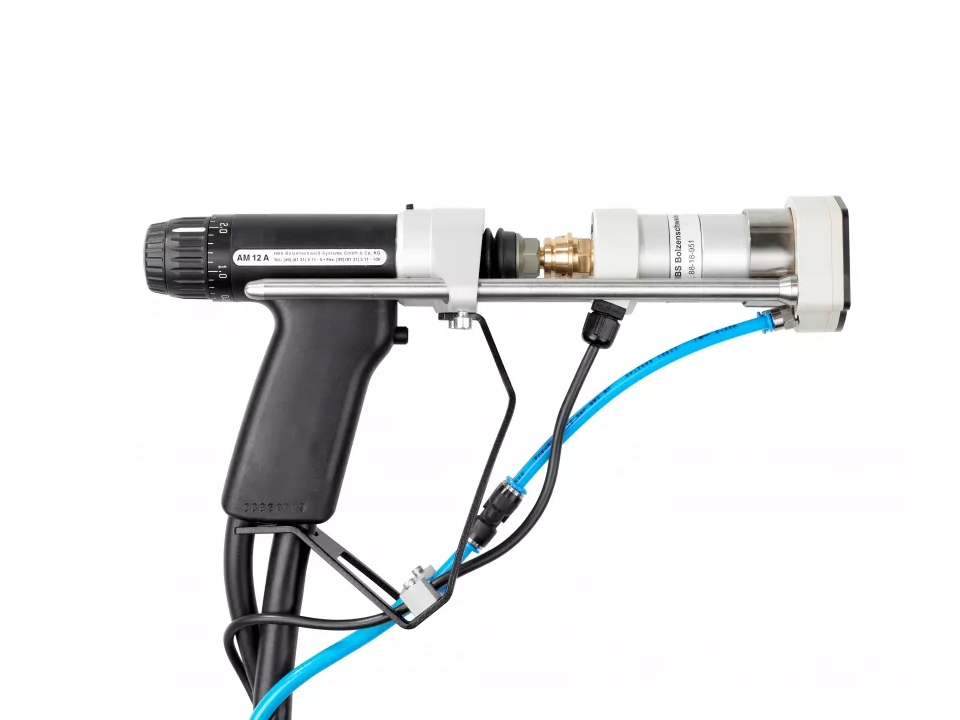

AM 12 A STUD WELDING GUN
Application
- For welding of welding nuts of type HexNut
- For welding on perforated and unperforated metal sheets
- Especially suitable for workshop and assembly area
Structure
- Rigid casing made of impact-resistant plastic
- Zero-play ball linear bearing for guiding the welding piston
- Sealed welding piston guidance
- Integrated lift and spring-loaded adjustment
Safety
- Lock-in spring adjustment
- High level of security to prevent the selected settings being changed inadvertently
- Guidance system protected against spatters
- Temperature monitoring
Welding
- Reproducible piston movement with minimized rebound effect for optimum welding quality via lift damper
- Welding on painted sheets possible (clean, smooth and flat surfaces and grounding required)
- Automatic length compensation
| Welding range | Welding nuts of type HexNut M6 to M12 |
| Wall thickness | 1 to 3 mm / 0.04" to 0.12" (other sheet thicknesses on request) |
| Welding element material | A2-50 |
| Welding element type | MARC welding nut - type HexNut |
| Welding rate | Up to 4 welding nuts/min. The maximum welding sequence is limited by a number of parameters. |
| Length compensation | 3 mm / 0.12", automatic |
| Lift | Adjustment range 3 mm / 0.12", lockable |
| Spring pressure | Adjustable, arresting |
| Welding cable | 5 m / 16.40' |
| IP Code | IP 20 |
| Workplace noise level | Up to 90 dB (A) may occur during welding |
| Dimension LxWxH | 320 x 70 x 200 mm / 12.60" x 2.76" x 7.87" (without cable, with leg assembly) |
| Weight | 0.9 kg / 1.98 lbs (without cable) |
